Functions & Features

●High quality and precision
●with 2 probes (Standard probe and Angle probe)
●Integrated with a 4mm calibration block.
●Two display units: mm and inch.
●With coupling state indication.
●Measuring sound velocity: according to the known thickness of the object, sound velocity of it can be
measured directly.
●Software for PC connection and data transmission, analysis.
●3 years warranty and life-long services

Measuring Materials

● Adapted to all kinds of materials which are good conductor of ultrasonic wave, such as metals(steel, cast
iron, aluminum, copper and etc), plastic, ceramics, composites, epoxies, glass and etc.

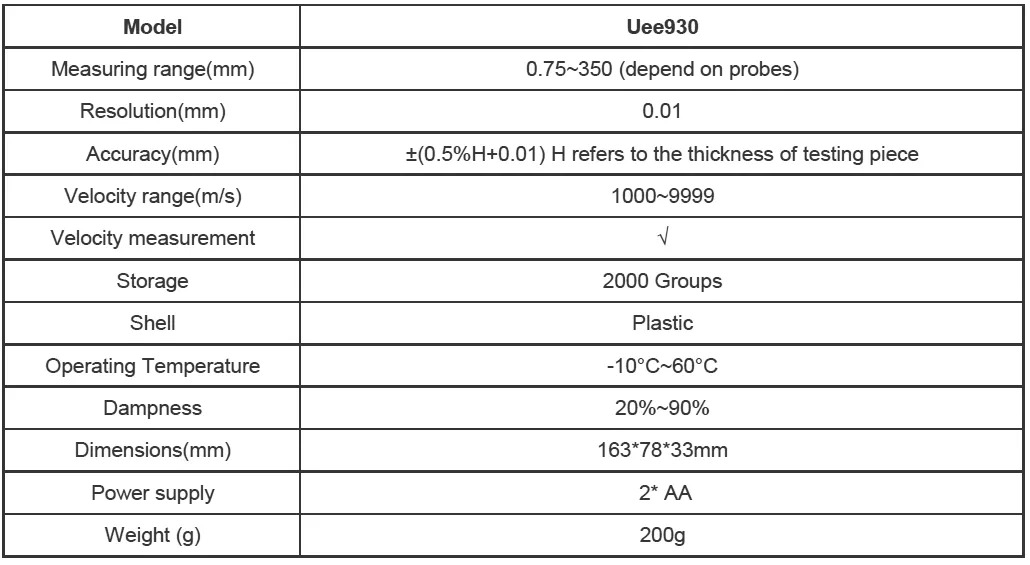

Technical Parameters
