Functions & Features

●High quality and precision
●Built-in thermal printer.
●with 2 probes (Standard probe and Angle probe) and 4 steps calibration block .
●Rechargeable Li-ion battery, available for 10 hours measuring continuously.
●Two display units: mm and inch.
●Large memory for saving measuring data.
●Measuring sound velocity: according to the known thickness of the object, sound velocity of it can be measured directly.

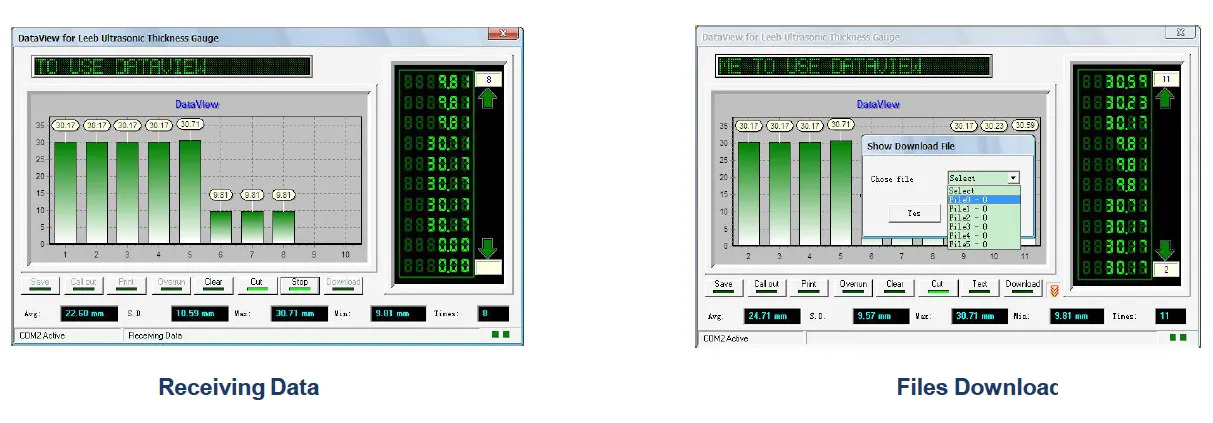

●Available software for PC connection, data transmission & analysis, and printing measurement reports.

Measuring Materials

● Adapted to all kinds of materials which are good conductor of ultrasonic wave, such as metals(steel, cast iron, aluminum, copper and etc), plastic, ceramics, composites, epoxies, glass and etc.

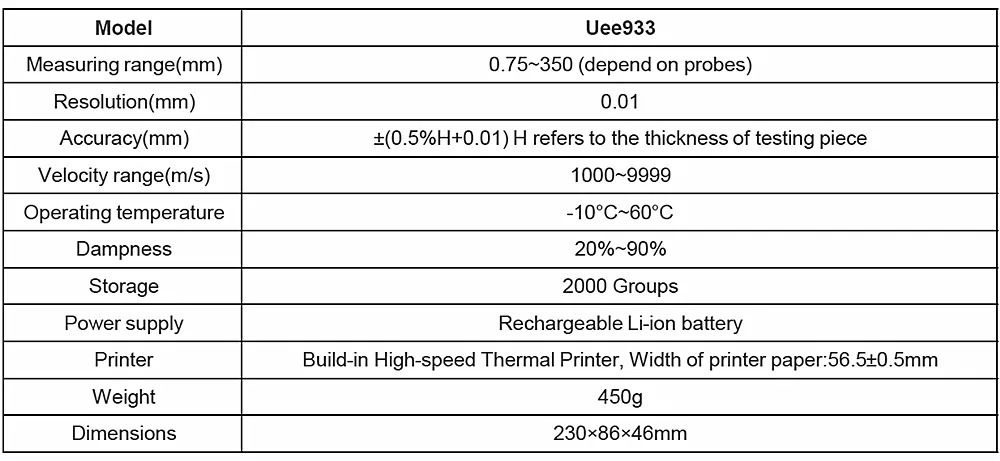

Technical Parameters

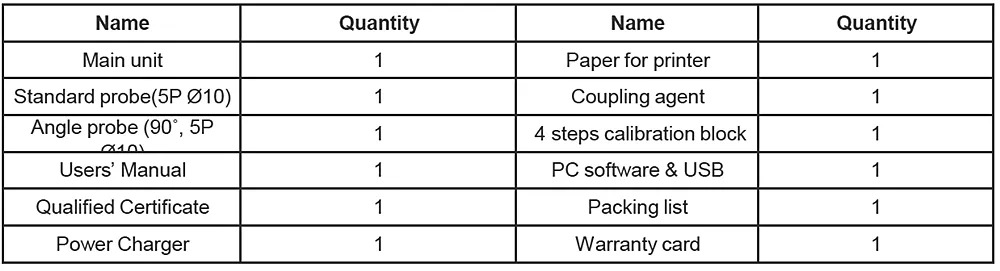

Standard Configuration

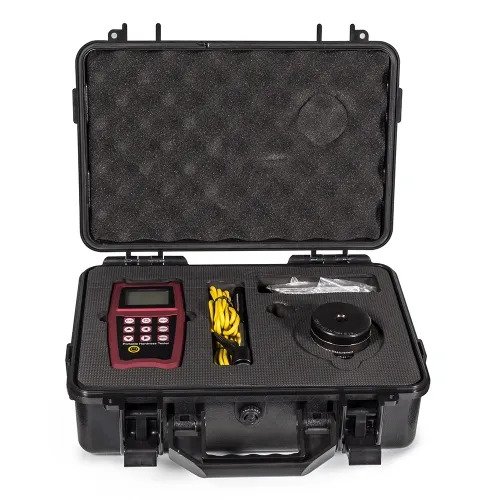

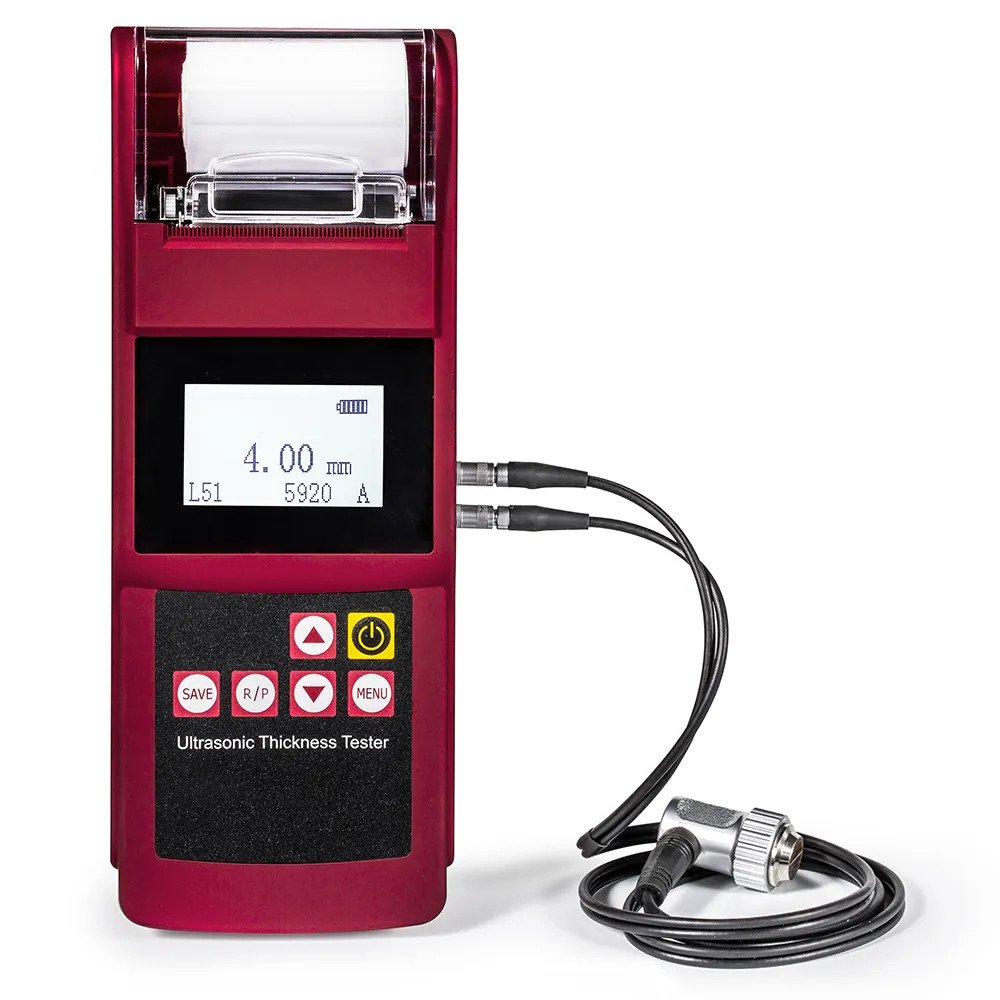

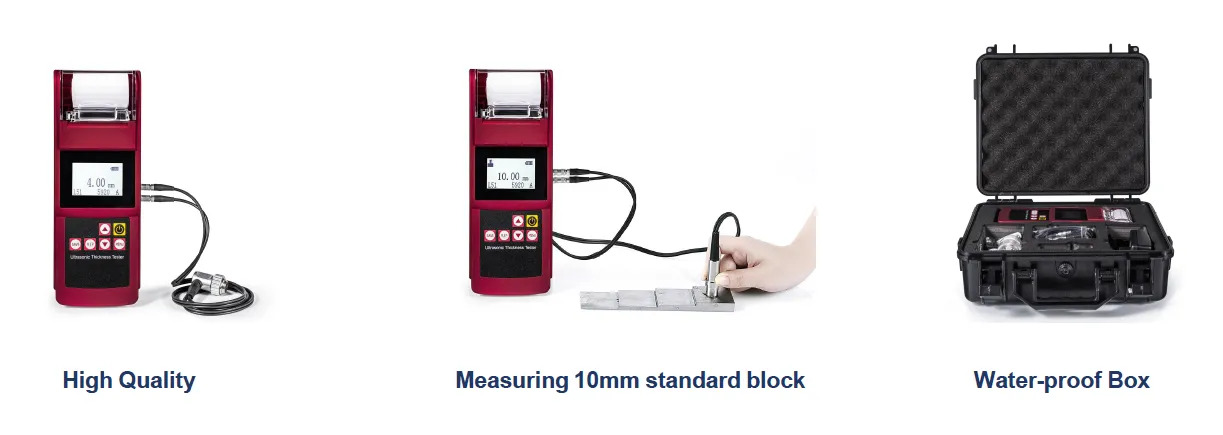

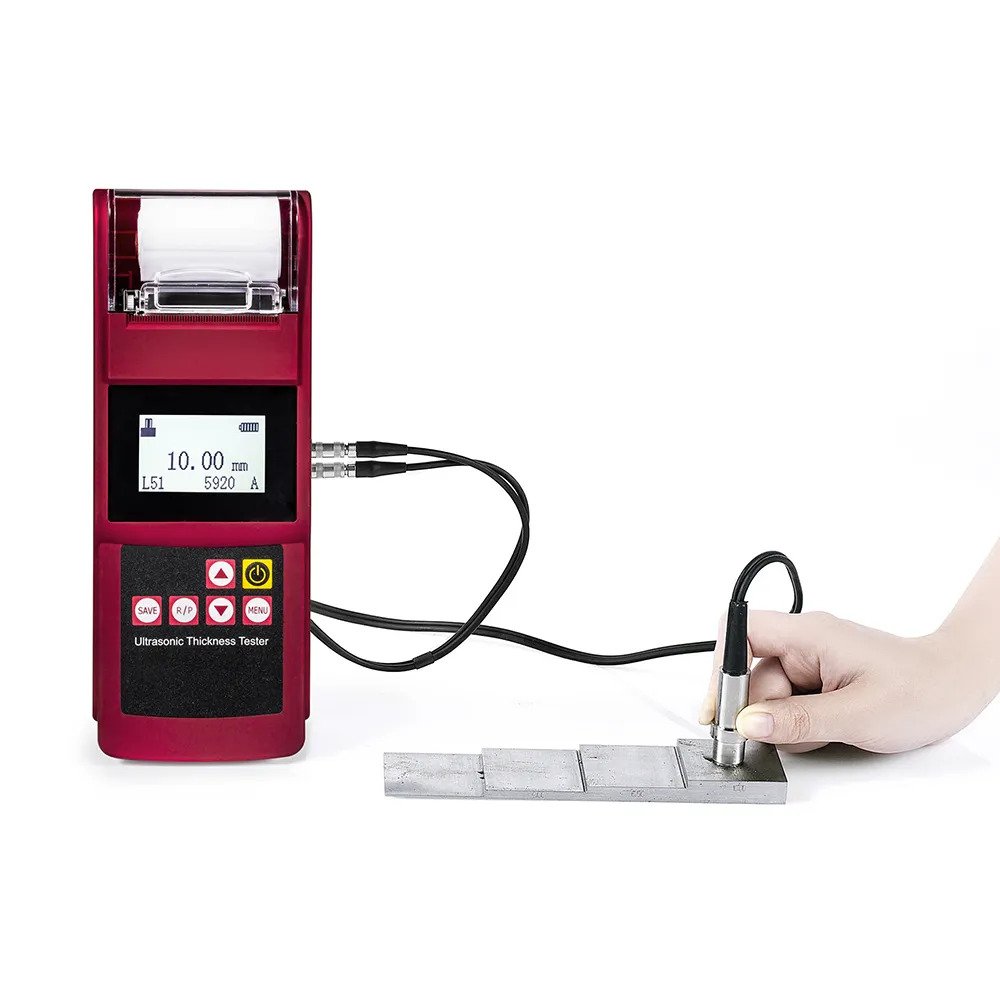

Pictures

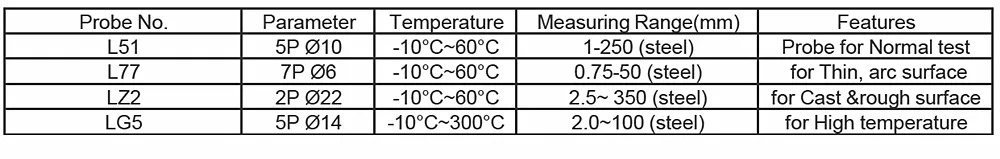

Optional Accesories - Probes
