Coating thickness gauge is mainly used for measuring hull, oil and gas pipeline, high pressure vessel and boiler wall thickness as well as a variety of plate thickness, can be measured material is a delegate with steel metal materials, can be plastic, nylon and other non-metallic materials.
Measuring Materials:
Non magnetic coatings on magnetic substrates (such as aluminum, chromium, copper, zinc, tin, rubber, paint on the steel, iron, alloy and magnetic steel)
Technical Specifications:
Leeb253
Operating principle
Magnetic induction
Measuring range (µm)
0~6000μm
Accuracy
±[（1~3%)H+1]
Low range resolution (µm)
1μm
Min curvature of the min area (mm)
Convex1.5 Concave20
Diameter of the min area (mm)
Φ10
Critical thickness of substrate (mm)
0.5
Operating temperature
0℃~40℃
Dampness
20%~90%
Magnetic field
No strong magnetic field environment
Dimensions
150×55.5×23mm
Power supply
AAA Alkaline battery
Weight
120g
Standard configuration

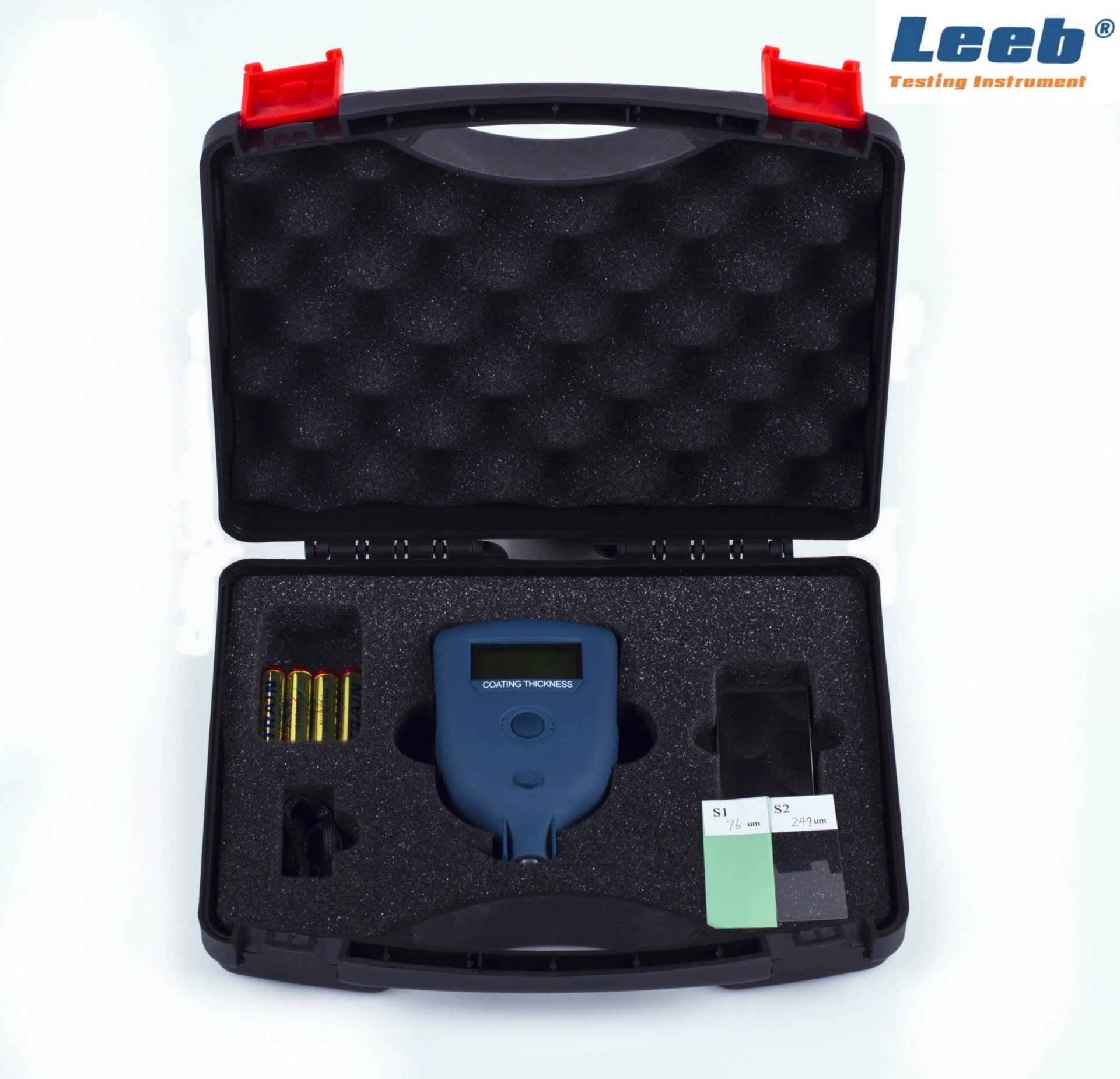

Main unit,5 specimens (50mm、100mm、200mm、500mm、1000mm)、4 AAA Batteries.
