Product Description

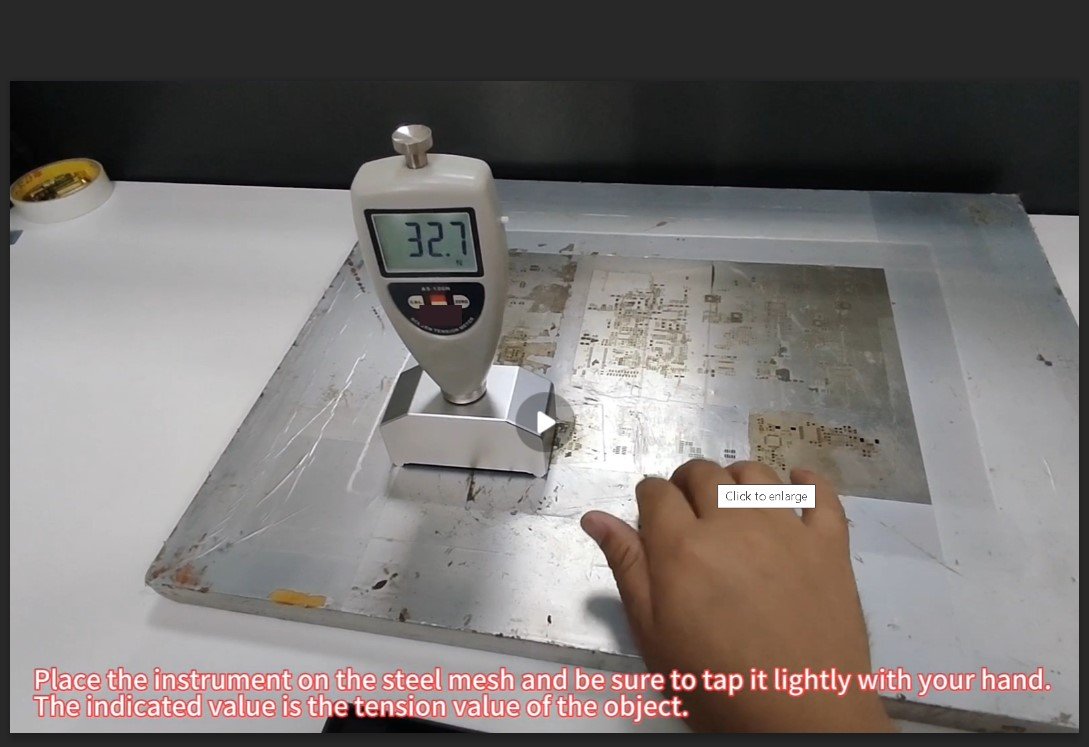

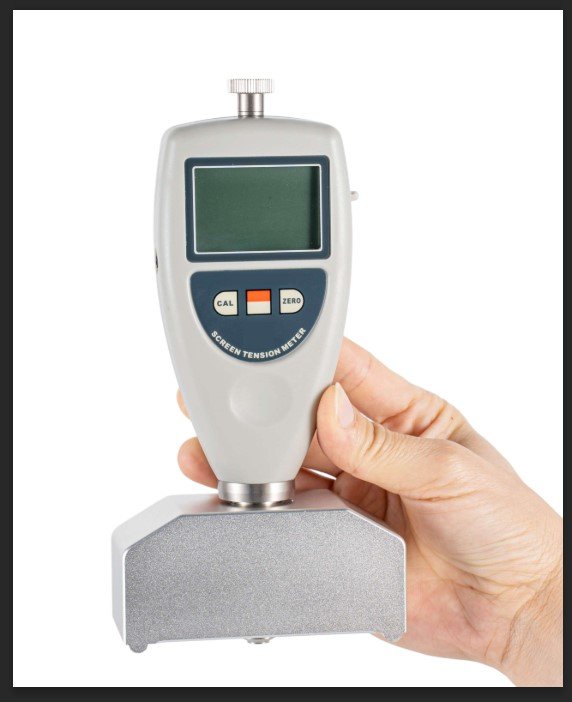

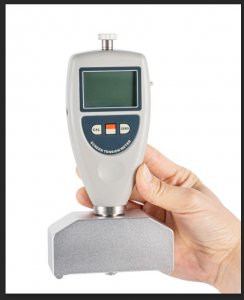

Screen Tension Tester applicable to general wire mesh tension and steel mesh tension measurement. Suitable for
screen printing and screen stencil measurement, high accuracy. The ideal and necessary tool for production of precise
screen and steel mesh.
Product Features
* LCD digital display, eliminating reading error.
* Unit conversions between N/cm and kg/cm.
* Use USB data output with connection PC.
* Provide Bluetooth data outputchoice.

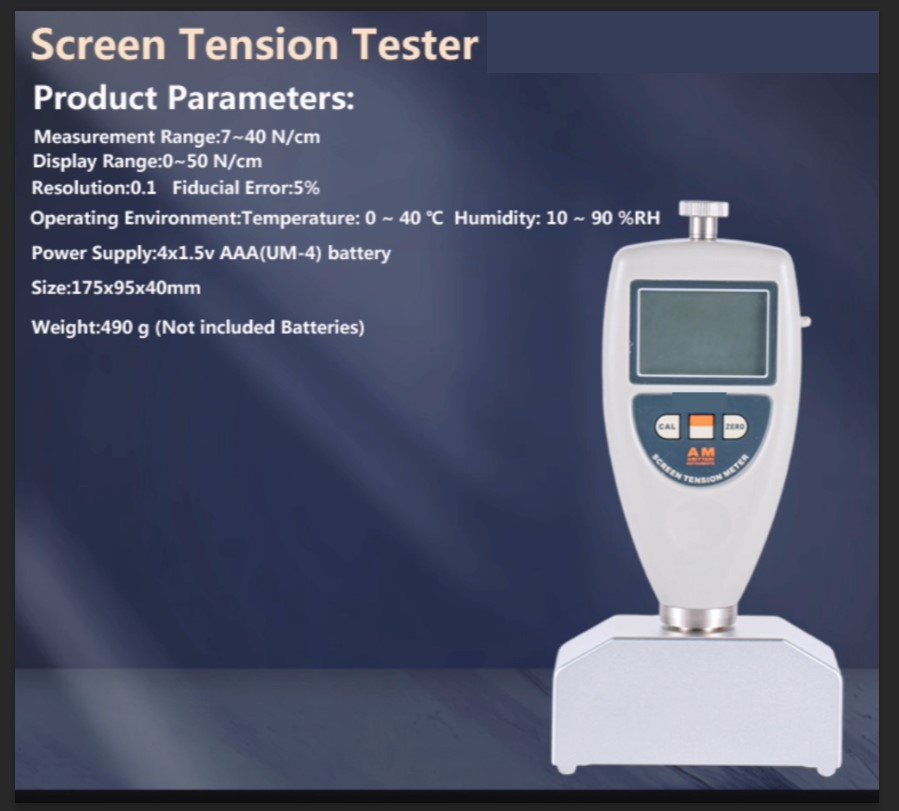

Product Parameters
| Measurement Range | 7~40 N/cm |
| Display Range |
0~50 N/cm |
| Resolution | 0.1 |
| Fiducial Error | 5% |
| Operating Environment | Temperature: 0 ~ 40 ℃ Humidity: 10 ~ 90 %RH |
| Power Supply | 4x1.5v AAA(UM-4) battery |
| Size | 175x95x40mm |
| Weight | 490 g (Not included Batteries) |
Product Accessories
|
Standard Accessories |
Main Unit |
|
Calibration Block |
|
| Carrying Case | |
| Operation Manual | |
|
Optional Accessories |
USB/RS232C data output |
| Bluetooth data output |
Printing Task and Determination of Screen Tension
| Wire Mesh | Printing Task | Tension (N/cm） |
| Ultra High Tension Wire Mesh | Circuit Board and Measuring Scale | 16~20 |
| High Strength Wire Mesh | Multicolor and Four-Color Printing (Mechanical Printing) |
16~20 |
| High Precision Ultra Fine Wire Mesh | High Precision Multi Layer Circuit Printing | 25~30 |
| High Precision Polyester Net (Standard Monofilament) |
Multicolor and Four-Color Printing (Manual Printing) |
8~12 |
| Ordinary Polyester Net (Standard Monofilament) |
Flat Object | 8~12 |
| Nylon Mesh | Curve Surface or Rough Object | 8~12 |
