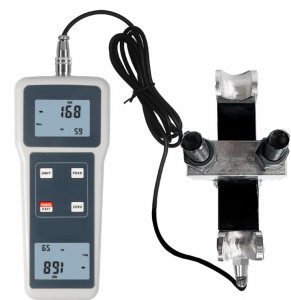

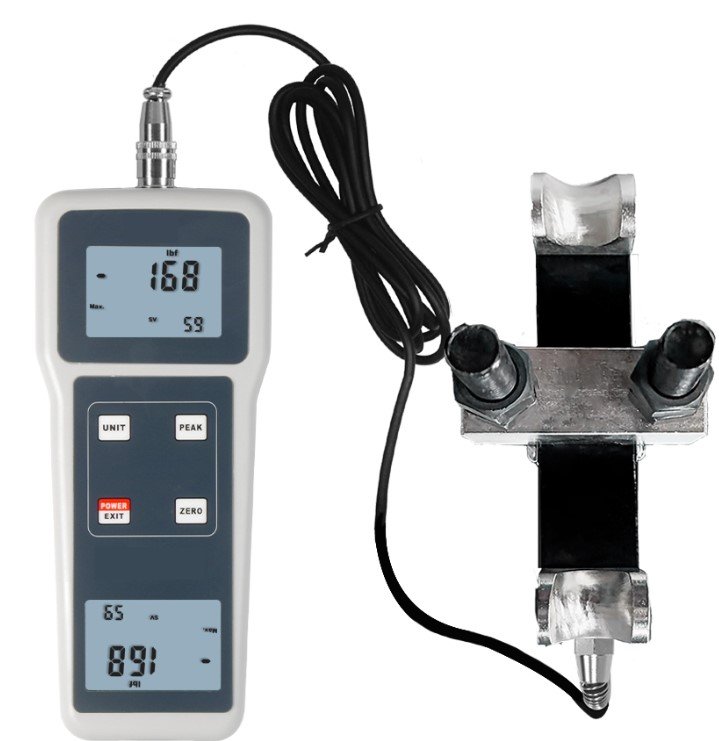

AMI011B-1000K 1000KGF SIDE PRESSURE TENSIMETER -1T

Category: Tension meters
Features

* High accuracy and high resolution.

* Digital display with no guessing or errors.

* With 4 measurement unit for selection, N, kg, lb.

* With peak value hold function.

* Either alkaline battery Power supply or 5V DC power.



Specifications

Model

AMI011

AMI011B

AMI011C

AMI011D

AMI011E

Force Range

±500kgf

±1000kgf

±2000kgf

±5000kgf

±10000kgf

±4900N

±9800N

±16900N

±49000N

±98000N

±1100Lbf

±2200Lbf

±4400Lbf

±11000Lbf

±2200 Lbf

Resolution

0.01 kgf ( <100 kgf )

0.1 kgf ( ≥100 kgf )

0.01 N ( <1000N )

1 N ( ≥1000 N )

0.1 Lbf ( < 1000 Lbf )
1Lbf ( ≥ 1000 Lbf )

Accuracy

±0.5% FS ±1 Digit

Unit

kgf, N, Lbf

Measurement State

Peak Value, Real Time Measurement

Display

2 Reversed 4 Digit LCD

Power Off

10 Mins Auto Power Off, Manual Power Off

Backlight

Blue Backlight

Safe Load

150% FS ( Buzzer Alarm Over 110% FS )

Power Supply

2 x 1.5 AA ( UM-3 ) Battery or 5VDC Power

Operating

Temperature: 0°C ~ 40°C

Conditions

Humidity: <80%

Surrounding

No Vibration Source or Corrosive Mwdium

Weight

1165 g

Case Size

175 mmx 80mm x 36 mm

Senor Size

140mm x 65mm x 105 mm





Accessories



Standard Accessories Digital Force Gauge
Manual
Carrying Case
Optional Accessories Power Adapter
