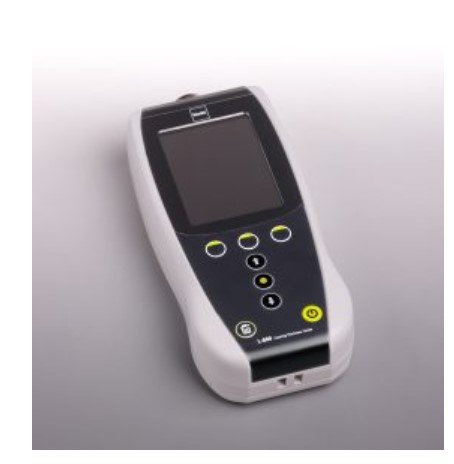

• Flagship model of coating thickness tester
• Must be used with an optional probe (See "Applicable probe" column.)
• Automatic statistical calculations (Average, standard deviation, max and min value)
• Equipped with 4 measurement modes (Single / Free / Scan / Scan average)
• Expert model can be connected with Android app via Bluetooth®  (To be released in 2025 Spring)

Specifications

Measurement Method	Electromagnetic induction or eddy-current *Depends on probe
Applications	Non-magnetic coating on ferrous substrate or insulating coating on non-ferrous substrate *Depends on probe
Measurement Range and Precision	Depends on probe. See "Applicable probe" column.
Resolution	0.1µm for less than 100μm, 1μm for 100μm or more (when displayed in μm)0.01mm for less than 10mm, 0.1mm for 10mm or more (when displayed in mm)
Conformity Standard	Electromagnetic induction: JIS K5600-1-7, JIS H0401, JIS H8401, JIS H8501, / ISO 2808, ISO 2064, ISO 1460, ISO 2178, ISO 19840 / ASTM B 499, ASTM D 7091, ASTM E 376 Eddy-current: JIS K5600-1-7, JIS H8680-2, JIS H8501 / ISO 2808, ISO 2360, ISO 2064, ISO 19840 /ASTM B 244, ASTM D 7091, ASTM E 376
Applicable Probe	EP-100, HP-100, EP-110, HP-110
Statistical Functions	Number of measurements, Average value, Standard deviation, Maximum value, Minimum value, Trend graph
Display	Digital (Blanview? 2.7 inch full color LCD)
Data memory	L-600 Standard model: 50,000 items L-600 Expert model: 100,000 items
Data Output	L-600 Standard model: USB-C L-600 Expert model: USB-C, Bluetooth
Power Source	1.5V (AA alkaline battery) ×4
Dimensions & Weight	70 (W)×155 (D)×35 (H) mm, 0.2 kg
Accessories	Iron substrate (for Fe probe) Aluminium substrate (for NFe probe) Calibration foils x 4 (10, 100, 500, 1000μm) Battery 1.5V (AA alkaline) x 4 Probe adapter Carrying pouch Strap USB cable (Type-C) Connector cover List of compatible probes & optional calibration foils Operating Manual
Options	Various Fe/NFe probes (required option) Calibration foils (thickness other than accessories) Measuring Stand LW-990 Soft carrying case Bluetooth communication dongle VZC76 (Only for expert model) Calibration certificate (calibration certificate, calibration record, traceability flow chart)
PC Software	LDL Export
