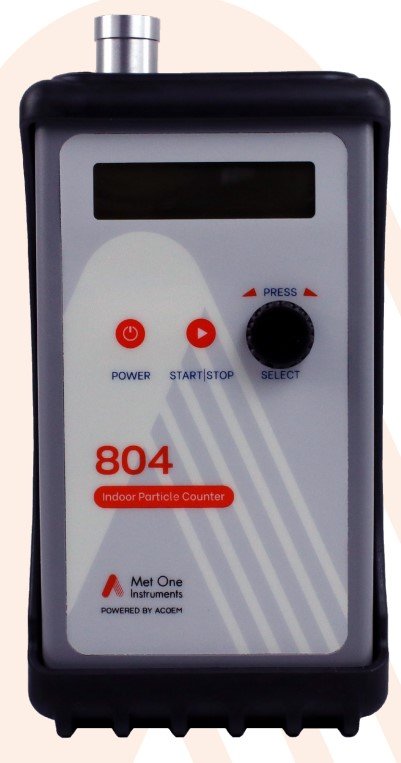

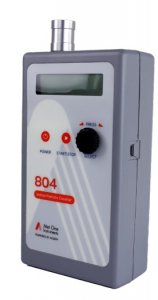

The Model 804 Handheld Particle Counter from Met One Instruments Powered by Acoem is a 4-channel portable particle counter that counts particles 0.3 microns to 10.0 microns – giving you portability and reliability at very competitive pricing. Though compact, this unit is completely self-contained with its own internal battery and sample pump. The unit is configurable, allowing you to choose your particle sizes of interest from seven sizes: 0.3, 0.5, 0.7, 1.0, 2.5, 5.0, or 10.0 microns.
Operations / Interface
The 804 is simple to operate, using only two front-panel buttons and scroll wheel to control a user-friendly, menu-driven platform for easy configuration. Unlike other counters that can take up to a minute to deliver results, the 804 incorporates user-selectable sampling times up to 1 minute and displays counts in as little as 3 seconds. The unit will take single or continuous samples. A self-contained battery pack powers the unit for 30 hours of typical intermittent operation, and up to 8 hours of continuous use. The included AC charger / adapter operates the counter, even when the battery pack is discharged, and recharges the depleted battery in 2.5 hours. The 804 can also store up to 2,500 records for output as Excel formatted output via included COMET software. A USB interface provides quick data download and firmware upgrades.
Features
- Fast Sampling
- Simple Operation
- Selectable sizes with available favorites and (2) sizes displayed.
- Low cost w/ data logging
- Self Contained
- 1-Year Warranty
Accessories
Supplied:
- Operation Manual
- AC to DC Converter Module with IEC AC Power Cord
- NIST Traceable Calibration Certificate
- USB Cable
- COMET Software
| PERFORMANCE | |
| Particle Size Range | Four Channels : >0.3, >0.5, >0.7, >1.0, >2.5, >5.0, and >10.0 µm (selectable) |
| Concentration Range | 0 – 3,000,000 particles per cubic foot (105,900 particles/L) |
| Accuracy | ± 10%, to calibration aerosol |
| Sensitivity | 0.3 µm |
| Flow Rate | 0.1 cfm (2.83 lpm) |
| Sample Time | Adjustable (3-60 seconds) |
| Status Indicators | Low Battery, Service |
| ELECTRICAL | |
| Light Source | Laser diode, 30 mW, 780 nm |
| Power | 7.2V Lithium Ion self-contained battery pack—provides 30 hours of typical intermittent operation, up to 8 hours continuous use |
| AC Adapter/Charger | AC to DC module intelligent Lithium Ion charger, 100 – 240 VAC to 8.4 VDC @ 1500 mA typical. Charge time 2.5 hours typical |
| Communications | USB |
| Certifications | Meets or exceeds CE, ISO, ASTM, and JIS international certifications |
| INTERFACE | |
| Display | 2 line by 16-character LCD |
| Keyboard | 2-button membrane |
| PHYSICAL | |
| Size | Height: 6.75” (17.2 cm) Width: 3.75” (9.5 cm) Thickness: 2.0” (5.1 cm) |
| Weight | 1.31 lb (21 oz) (0.60 kg) |
| ENVIRONMENTAL | |
| Operating Temperature | 0˚ to +50˚C |
| Storage Temperature | -20˚ to +60˚C |
