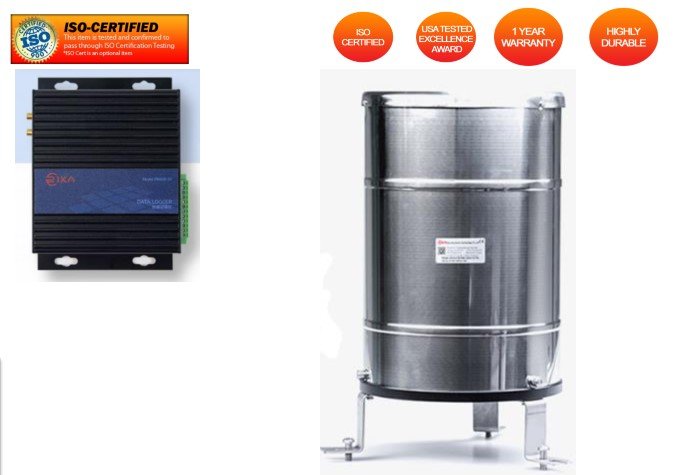

RKA003B - AUTOMATIC RAINFALL STATION W STAINLESS STEEL RAIN GAUGE, 3G/4G SMART CLOUD The RKA003B Data Logger with data acquisition, transmission and management, and other functions, is the core component of automatic weather station, which can connect 32 parameter at the same time, can communication with sever or cloud via cable or wireless connection, provide communication protocol, convenient for secondary development.
|
Item |
Specification |
|
Rainfall collector |
Diameter :φ200mm ±3mm. height: 350mm |
|
Range rainfall |
Max: 150mm/hour |
|
Allow rainfall intensity |
Max: 10mm/min |
|
Resolution |
0.2mm |
|
Accuracy(150mm/hour) |
±2% |
|
Maximum load voltage |
30VDC(pulse output) |
|
Maximum load current |
20mA(pulse output) |
|
Output |
Reed switch pulses,RS485 to Datalogger |
|
Operating temperature(no freeze) |
-20-+80℃ |
|
Main material |
Collector:304SS,tipping bucket:ABS,IP67 |
|
Tipping bucket |
Single |
|
Heating(optional) |
Heating power: approx.350W |
|
Collector filter |
Removable filter (prevent leaves and sundries)optional |
|
Weight(unpacked) |
3.5kg |
|
Optional: |
|
RKA003A01 - SOLAR POWER SUPPLY SYSTEM FOR WEATHER STATION |
|
RKA003A02 - RECHARGEABLE BATTERY FOR WEATHER STATION |
