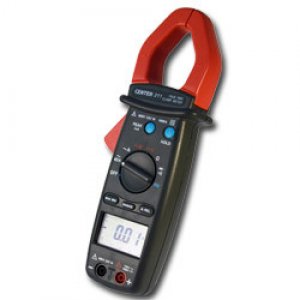

CENTER 210 series are mid-size clamp meters. These clamps can measure up to 1000A with resolution 0.01A. 1ms Peak function is also built-in this series of clamps. This is especially useful for start current measurement. Maximum, Minimum, and Hold function are also standard functions for these testers.
Features:
-
True RMS
-
High speed bargraph
-
Data hold function
-
Peak function
- Auto ranging
-
Auto power off
-
600V CATIII
 |
 |
 |
Specifications:
AC Current
| Range | Resolution |
Accuracy
50Hz~500Hz
|
|
| 40A | 0.01A | 1.9%+5 | |
| 400A | 0.1A | ||
| 1000A | 1A | ||
AC Voltage
| Range | Resolution |
Accuracy
50Hz~500Hz
|
| 400V | 0.1V | 1.2%+5 |
| 750V | 1V | |
DC Voltage
| Range | Resolution | Accuracy |
| 400V | 0.1V | 0.75%+2 |
| 1000V | 1V | |
Resistance
|
Range
|
Resolution
|
Accuracy
|
|
400Ω
|
0.1Ω
|
1%+2
|
|
4000Ω
|
1Ω
|
Diode
|
Range
|
Active Region
|
 |
0.6mA
|
Continuity
|
Range
|
Active Region
|
 |
< 600Ω
|
Frequency
|
Function
|
Range
|
Resolution
|
Accuracy
|
|
Hz (A)
|
4KHz
|
1Hz | 0.1%+1 |
|
10KHz
|
|||
|
Hz (V)
|
4KHz
|
1Hz | |
|
10KHz
|
|||
Jaw opening size: 35mm
Battery: 9V x 1
Dimensions: 242 x 66 x 36mm
Weight: 500g
*The specifications are subjects to change without prior notice.
Standard Accessories:Battery, test lead, instruction manual, carrying case |
