Product Description

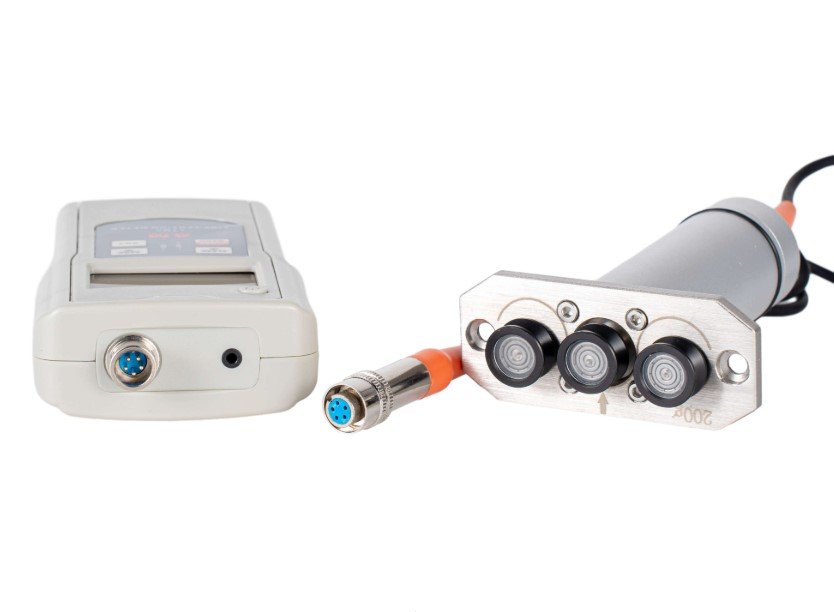

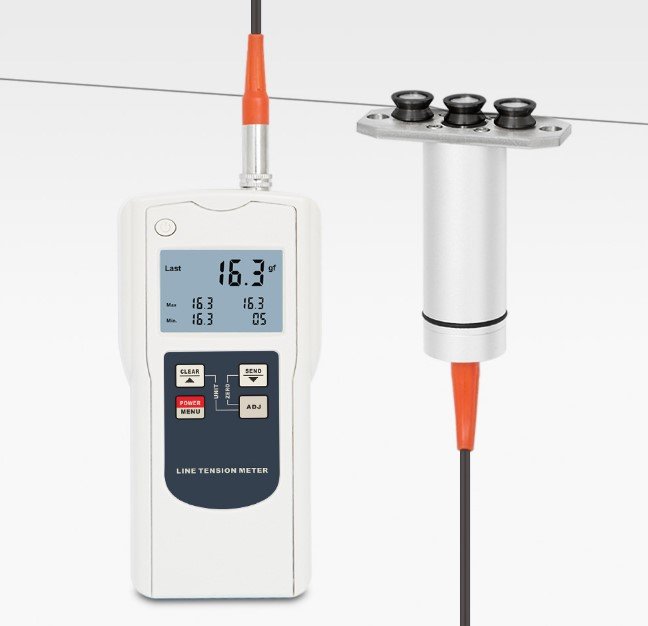

The LTMS Digital Tension Meter is a hand-held device which accurately measures the running as well as static tensions of a wide variety of process materials including yarns, fibers, wires, optical fibers, etc.
Product Feature
* It employs the "three-roller principle" of tension measurement.
* High accuracy and high resolution. Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* Current Value, Max. Value, Peak Value, Min Value can be displayed at the same time.
* With 10 minutes auto power off and manual power off.
* The Meter takes 62 tension measurements per second and displays the average of these measurements over a user-selected interval of 0.5, 1.0, 2.0 or 4.0 seconds, the Display Update Rate.
* With data output function. Measurement data can be transmitted to computer by USB cable or Bluetooth adapter for various analysis.

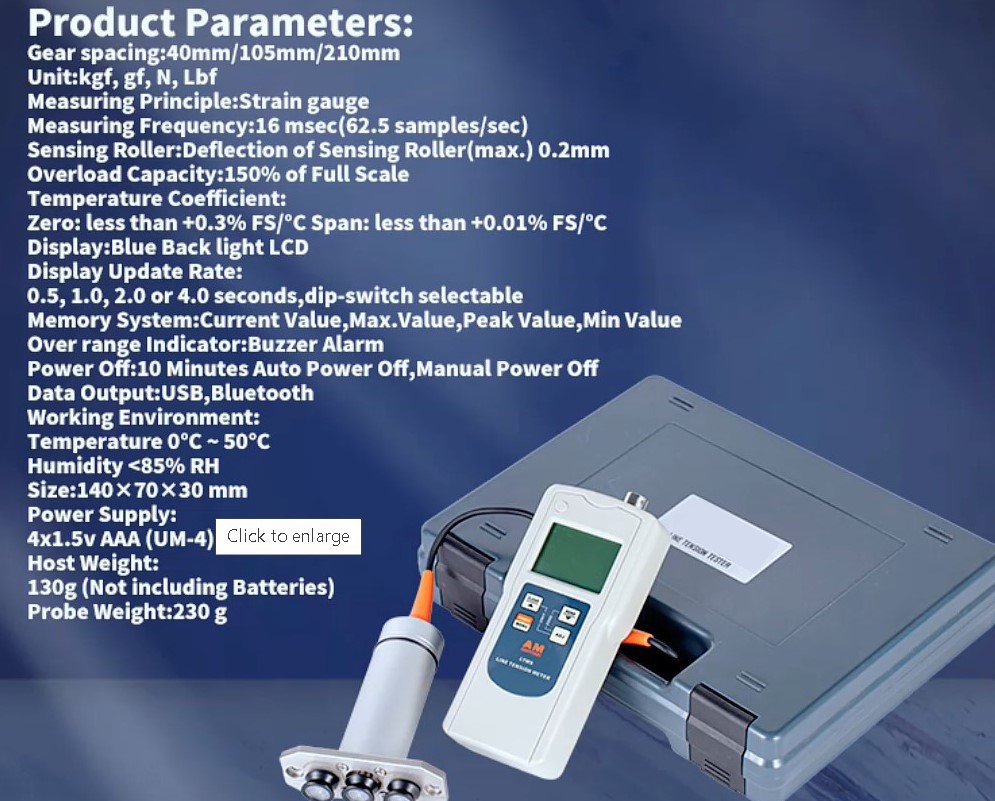

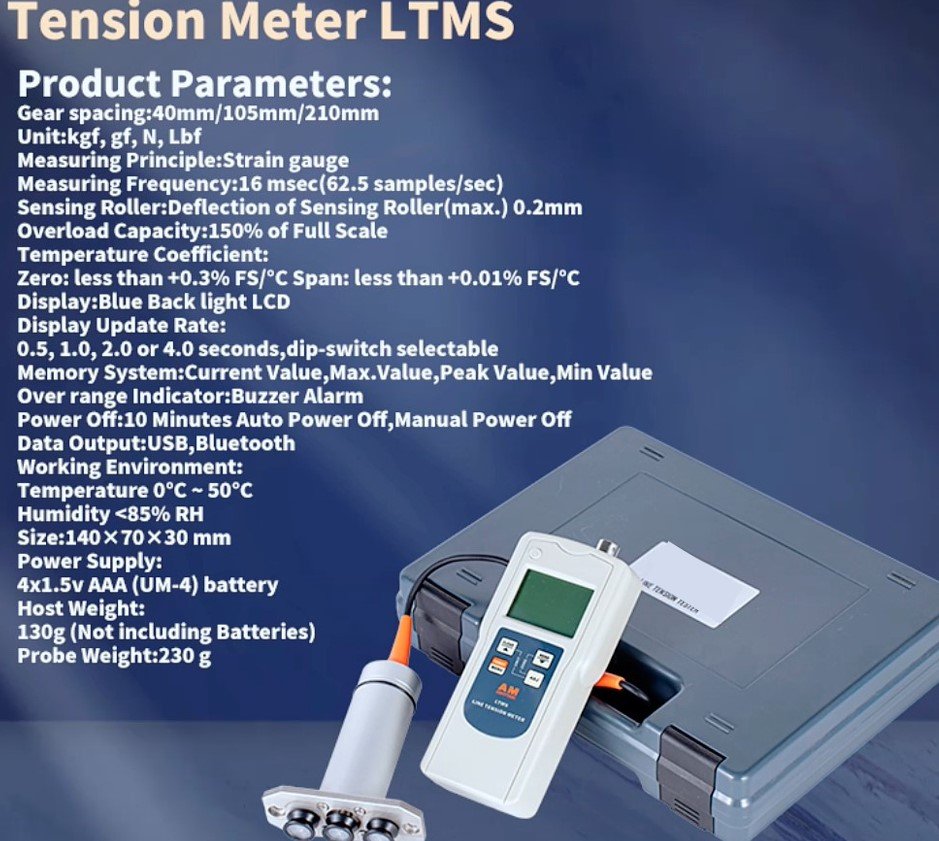

Product Parameters
|
Model |
AMI012 |
AMI012B |
AMI012C |
AMI012D |
AMI012E |
AMI012F |
AMI012G |
AMI012H |
|
Tension Range |
0~0.2kgf |
0~0.5kgf |
0~1.0kgf |
0~2.0kgf |
0~5.0kgf |
0~10.0kgf |
0~20.0kgf |
0~50.0kgf |
|
0~200gf |
0~500gf |
0~1000gf |
0~2000gf |
0~5000gf |
||||
|
0~1.96N |
0~4.9N |
0~9.8N |
0~19.6N |
0~49N |
0~98N |
0~196N |
0~490N |
|
|
0~0.44Lbf |
0~1.1Lbf |
0~2.2Lbf |
0~4.4Lbf |
0~11Lbf |
0~22Lbf |
0~44Lbf |
0~110Lbf |
|
|
Resolution |
0.001kgf |
0.001kgf |
0.001kgf |
0.001kgf |
0.01kgf |
0.01kgf |
0.01kgf |
0.01kgf |
|
1gf |
1gf |
1gf |
1gf |
1gf |
||||
|
0.001N |
0.001N |
0.001N |
0.01N |
0.1N |
0.1N |
0.1N |
0.1N |
|
|
0.001Lbf |
0.001Lbf |
0.001Lbf |
0.001Lbf |
0.01Lbf |
0.1Lbf |
0.1Lbf |
0.1Lbf |
|
|
Accuracy |
±1.0% or better |
±1.5% or better |
||||||
|
Gear spacing |
40mm |
105mm |
210mm |
|||||
|
Unit |
kgf, gf, N, Lbf |
|||||||
|
Measuring Principle |
Strain gauge |
|||||||
|
Measuring Frequeny |
16 msec (62.5 samples/sec) |
|||||||
|
Sensing Roller |
Deflection of Sensing Roller (max.) 0.2mm |
|||||||
|
Overload Capacity |
150% of Full Scale |
|||||||
|
Temperature Coefficient |
Zero: less than +0.3% FS/°C Span: less than +0.01% FS/°C |
|||||||
|
Display |
Blue Back light LCD |
|||||||
|
Display Update Rate |
0.5, 1.0, 2.0 or 4.0 seconds, dip-switch selectable |
|||||||
|
Memory System |
Current Value, Max. Value, Peak Value, Min Value |
|||||||
|
Over range Indicator |
Buzzer Alarm |
|||||||
|
Power Off |
10 Minutes Auto Power Off, Manual Power Off |
|||||||
|
Data Output |
USB, Bluetooth |
|||||||
|
Working Environment |
Temperature 0°C ~ 50°C |
|||||||
|
Humidity <85% RH |
||||||||
|
Size |
140×70×30 mm |
|||||||
|
Power Supply |
4x1.5v AAA (UM-4) battery |
|||||||
|
Host Weight |
130g (Not including Batteries) |
|||||||
|
Probe Weight |
230 g |
|||||||

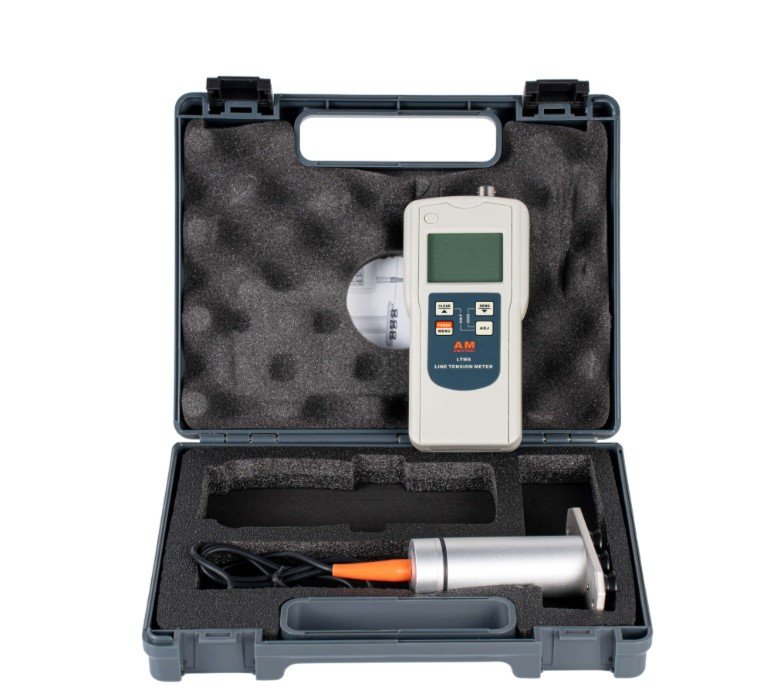

Product Accessories
|
Standard Accessories |
Main Unit |
|
Test Block |
|
|
Carrying Case |
|
|
Operation Manual |
|
|
Optional Accessories |
USB data output、Bluetooth |
