Product Description

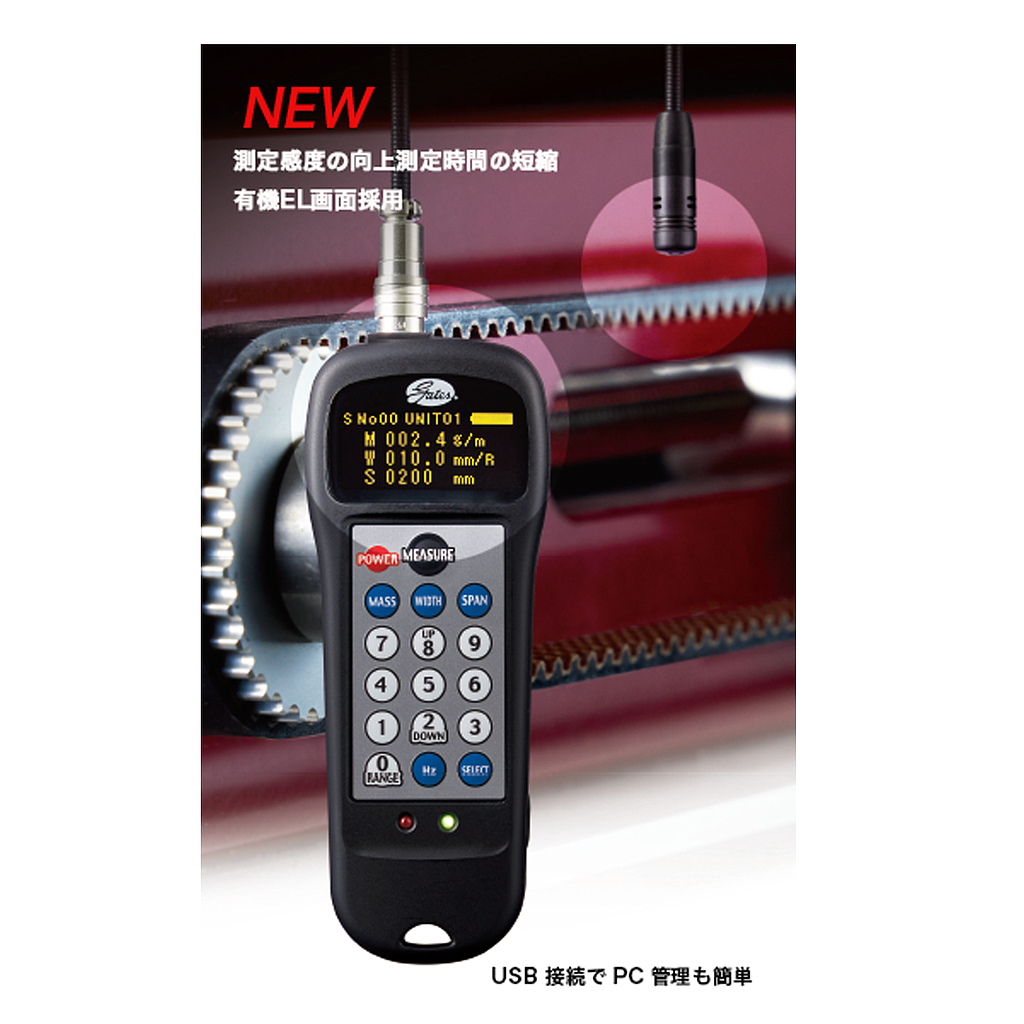

Gates Unitta Asia Sonic Belt Tension Meter U550 is extended version of U508 Sonic belt Tension meter by R.K. ENTERPRISES Asia.Gates Sonic Tension Meter U550C
Correct Belt Installation Tension Is Essential for Optimum Performance and Reliability of Multi-ribbed, V-belt and Synchronous Belt Drives. The 508c Sonic Tension Meter Ensures Simple and Extremely Accurate Tension Measurement by Analyzing Sound Waves From the Belt Through the Sensor. It Processes the Input Signals and Displays the Accurate Tension Measurement Digitally. Gates’ Tension Meter Is User-friendly: It Is Compact, Computerized and Stores Data for Repetitive Use. Gates’ Sonic Tension Meter Measures Belt Tension Accurately Every Time. It Is Supplied With a Handy Instruction Manual.

U-550, is new Sonic Belt Tension Meter with many improved features as given below.

• High quality sensors, data output to PC, wide measuring range.
• Pre installed belt unit mass, automatic trigger, large capacity memory.
• Automatic cancellation of Background noise, Automatic Power off.
• Organic EL display, reduced measuring time etc.

This is one of the world's best Sonic Belt Tension Gauge used to check belt tension automatic
for more details kindly see catalouge attached.

Optional Accessories
Cord Sensor (Pn 7420-00206)The Cord Sensor Is Recommended for MeasuringTensions at a Distance From the Tension Meter.Inductive Sensor (Pn 7420-00212)The Inductive Sensor Is Recommended forMeasurement Particularly in Noisy or WindyEnvironments. A Steel Clip to the Back of the BeltIs Required to Measure the Vibration Frequency.Package Offering (Pn 7420-10508)Sonic 508c + Inductive Sensor + Magnets.
Technical Characteristics
Suitable for Multi-ribbed Belts, V-belts and Synchronous Belts.Ce Approved.Rohs 2 Complaint: the Device Complies With the European Directive (2002/95/ec) on the Restrictionof the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.Batteries: 2 aMeasurement Range: 10 Hz to 5,000 Hz.Measured Accuracy: ± 1%.Lcd Screen Backlight.Double Display Possible (Newton and/or Hz).Flexible Flat Sensor (StandardIncluded - Pn 7420-00205).Stores Weight, Width and Span Constants for Up to Forty Different Drive Systems.Auto Gain Adjustment Function Automatically Eliminates Background Noise.Cord Sensor and Inductive Sensor Available on Request.Compact Model (H 160 Mm X D 26 Mm X W 59 Mm).Use and Storage Temperature Range: -10°c to +50°c (Free From Condensation).
